DIY - Auto Rain Shield for Clothes Kit - Arduino Nano

DIY - Auto Rain Shield for Clothes Kit - Arduino Nano

This DIY project automates the protection of clothes from rain using an Arduino Nano, a rain sensor, and a servo motor. When rain is detected, the system moves the clothesline under a shelter and returns it to the sun when dry.

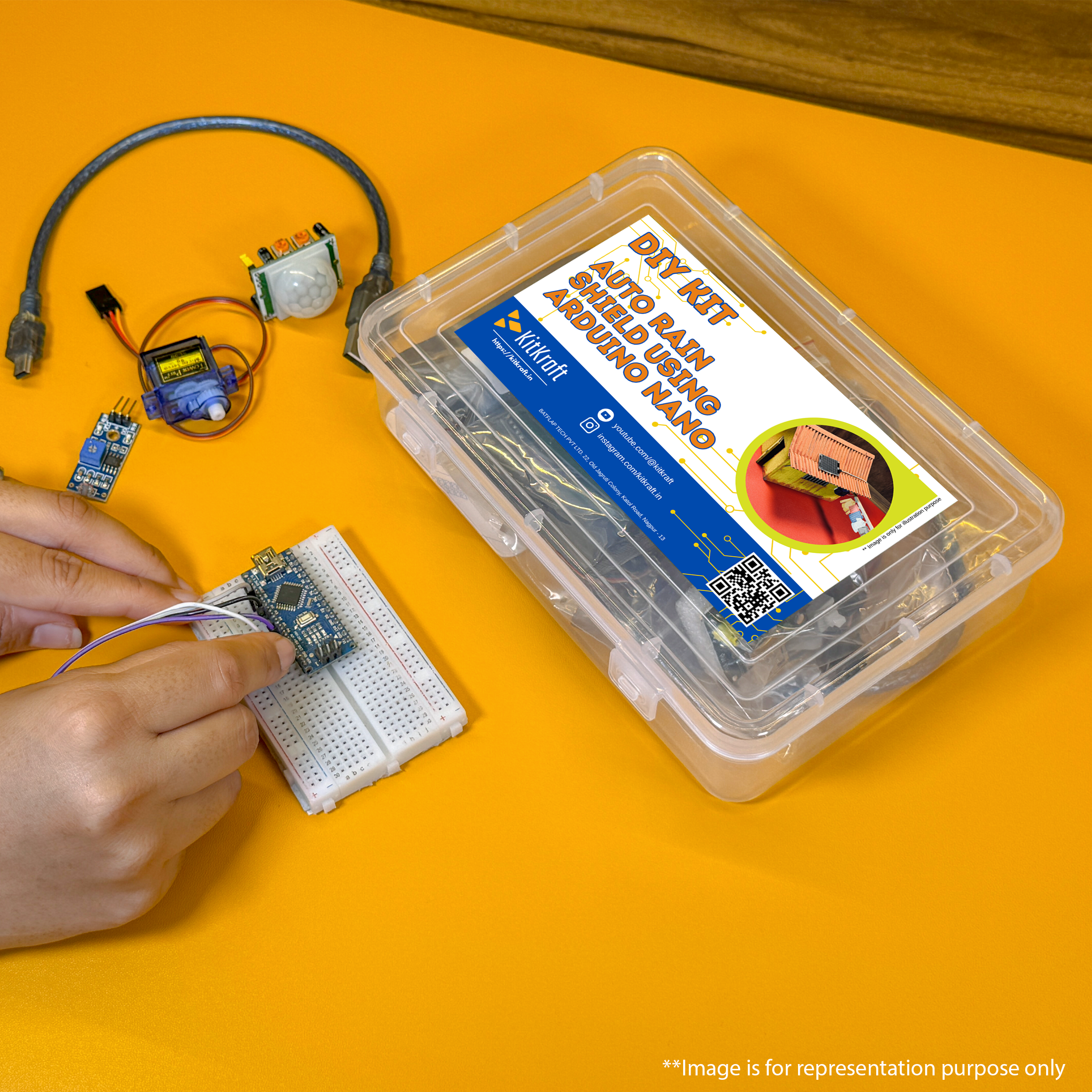

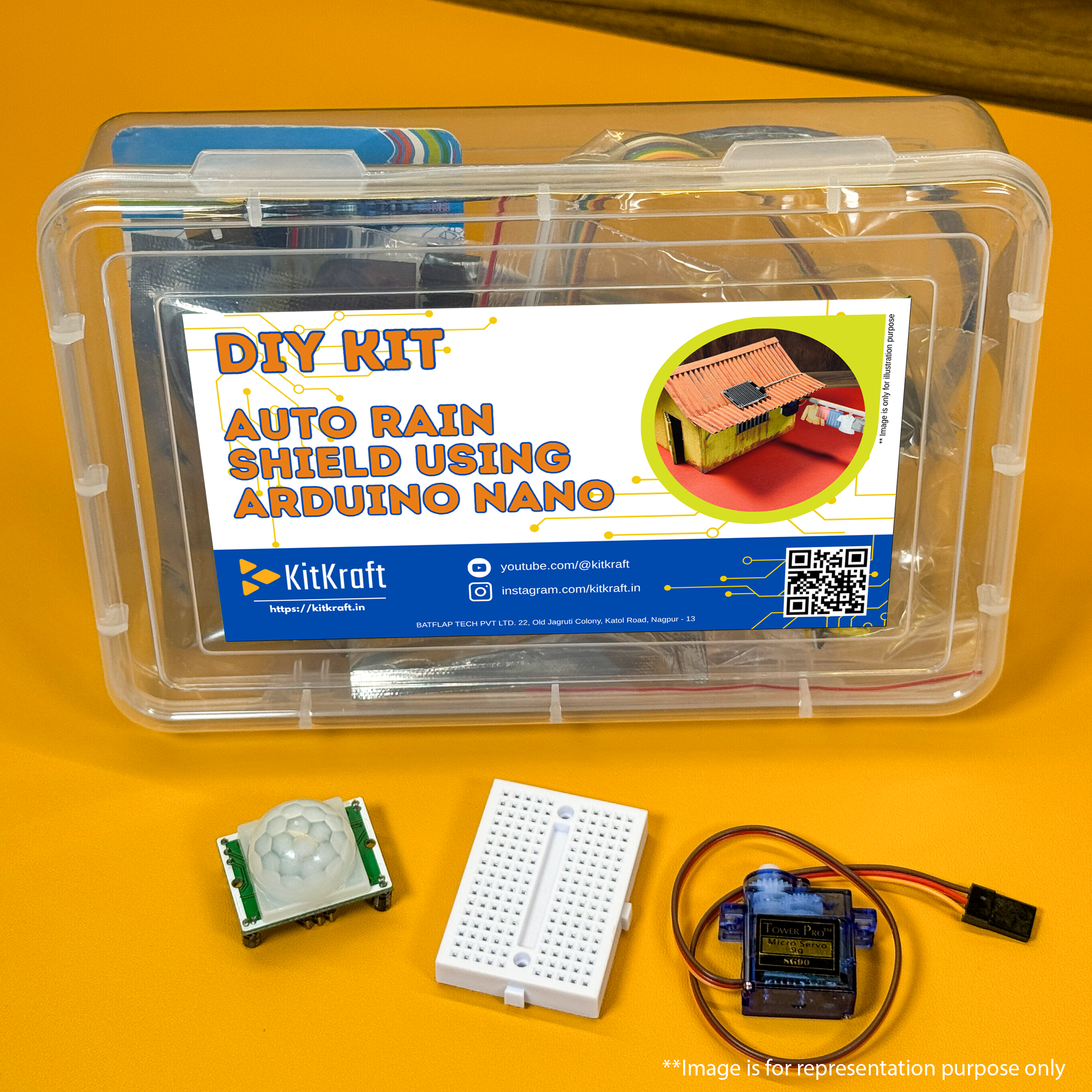

Package Contains:

• Arduino Nano - 1
• USB Cable - 1

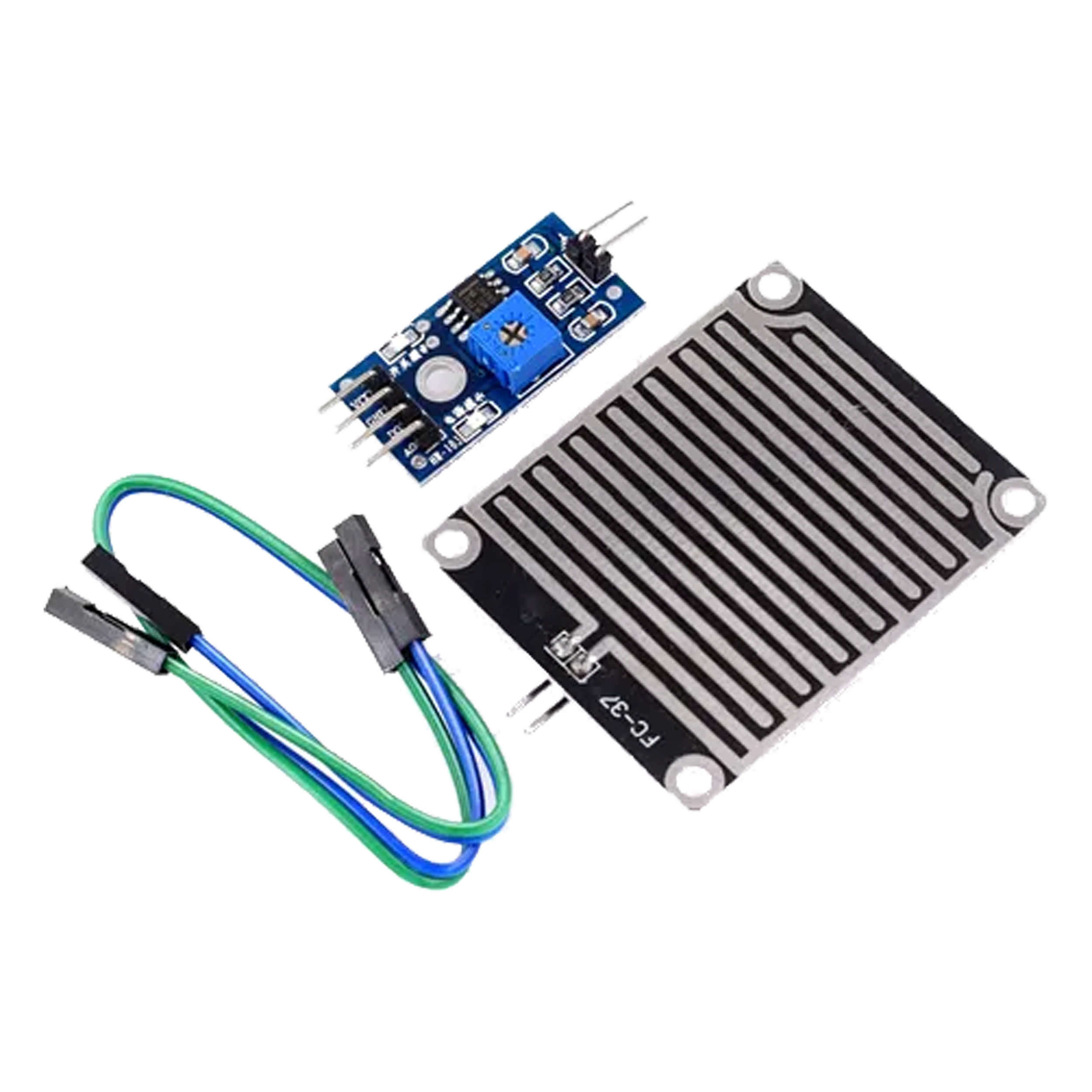

• Rain Sensor Module - 1
• Servo Motor - 1
• Cable Male to Male - 1
• Cable Male to Female - 1
• Breadboard - 1
• Breadboard power module - 1

Working Principle

1. The rain sensor detects moisture and sends a signal to the Arduino.
2. The Arduino Nano processes the signal and controls the servo motor.
3. The servo motor moves the clothesline under a shelter when it rains and back under the sun when dry.

Implementation

• Connect the rain sensor to the Arduino (VCC, GND, and signal pin to D2).
• Interface the servo motor (signal pin to D9).
• Upload the Arduino sketch from Github link from project page.
• Mount the components on a movable frame for smooth operation.
• Test the system by simulating rain conditions.

Project Details Link:

https://www.kitkraft.in/blogs/project/arduino-nano-based-auto-rain-shield-for-clothes-kitkraft-diy-home-automation-project

Applications

• Smart Home Automation – Hands-free weather protection for laundry.
• DIY Electronics – A great project to learn about sensors and motor control.
• Weather Protection – Ensures clothes remain clean and dry.

Note: Product image is for illustrative purposes only. The contents of the kit are limited to electronic modules and accessories as specified in the product description.
