LM2596 Step Down DC-DC Buck Converter

Name: LM2596 Step Down DC-DC Buck Converter
Brand: Kitkraft
SKU: KK000034
Price: 59.0 INR
Availability: InStock
Rating: 5.0 (10 reviews)

Available:

Only 15 items in stock

15 items in stock

In stock

Pre-order

Out of stock

Rs. 59.00

~~Rs. 100.00~~

(Including 18% GST)

Description
Key Features
Specifications
Advantages
Usage Instructions
Reviews

The ADIY LM2596 Buck Converter module is a versatile and easy-to-use step-down DC-DC converter with an adjustable output voltage. It boasts a wide input voltage range of up to 40V, making it suitable for various applications. The output voltage can be precisely adjusted using the onboard potentiometer. This module is capable of delivering up to 3A of DC load current with excellent line and load regulation. For currents exceeding 2A, the use of a heat sink is recommended to ensure optimal performance and thermal management.

High Efficiency: As a switch-mode power supply, the LM2596 converter offers significantly higher efficiency compared to popular three-terminal linear regulators, especially at higher input voltages.
Wide Input Voltage Range: Operates efficiently with input voltages up to 40V.
Adjustable Output Voltage: Easily adjustable using the onboard potentiometer.
High Load Capacity: Capable of delivering up to 3A of DC load current.
Compact Design: Operates at a switching frequency of 150 kHz, allowing for smaller filter components.

Input Voltage Range: Up to 40V
Output Voltage Range: Adjustable (varied using potentiometer)
Maximum Output Current: 3A (heat sink required for currents above 2A)
Switching Frequency: 150 kHz
Output Voltage Tolerance: ±4% under specified conditions
Oscillator Frequency Tolerance: ±15%
Standby Current: Typically 80μA during external shutdown
Protection Features: Two-stage frequency reducing current limit for output switch and over-temperature shutdown for complete protection under fault conditions.

Superior Efficiency: Significantly higher than linear regulators, making it ideal for applications requiring high efficiency.
Robust Protection: Built-in protection features ensure reliable operation under various conditions.
Compact and Lightweight: Smaller size due to high switching frequency, suitable for compact designs.
Versatile Applications: Suitable for a wide range of applications, from hobby projects to industrial uses.

Connect the Input Voltage: Ensure the input voltage is always greater than the required output voltage.
Adjust the Output Voltage: Use the potentiometer to set the desired output voltage.
Monitor the Current: If the load current exceeds 2A, attach a heat sink to the module to maintain optimal performance.

LM2596 Step Down DC-DC Buck Converter

AMS1117 3.3V Step-Down Power Supply Module

AMS1117 5V Step-Down Power Supply Module

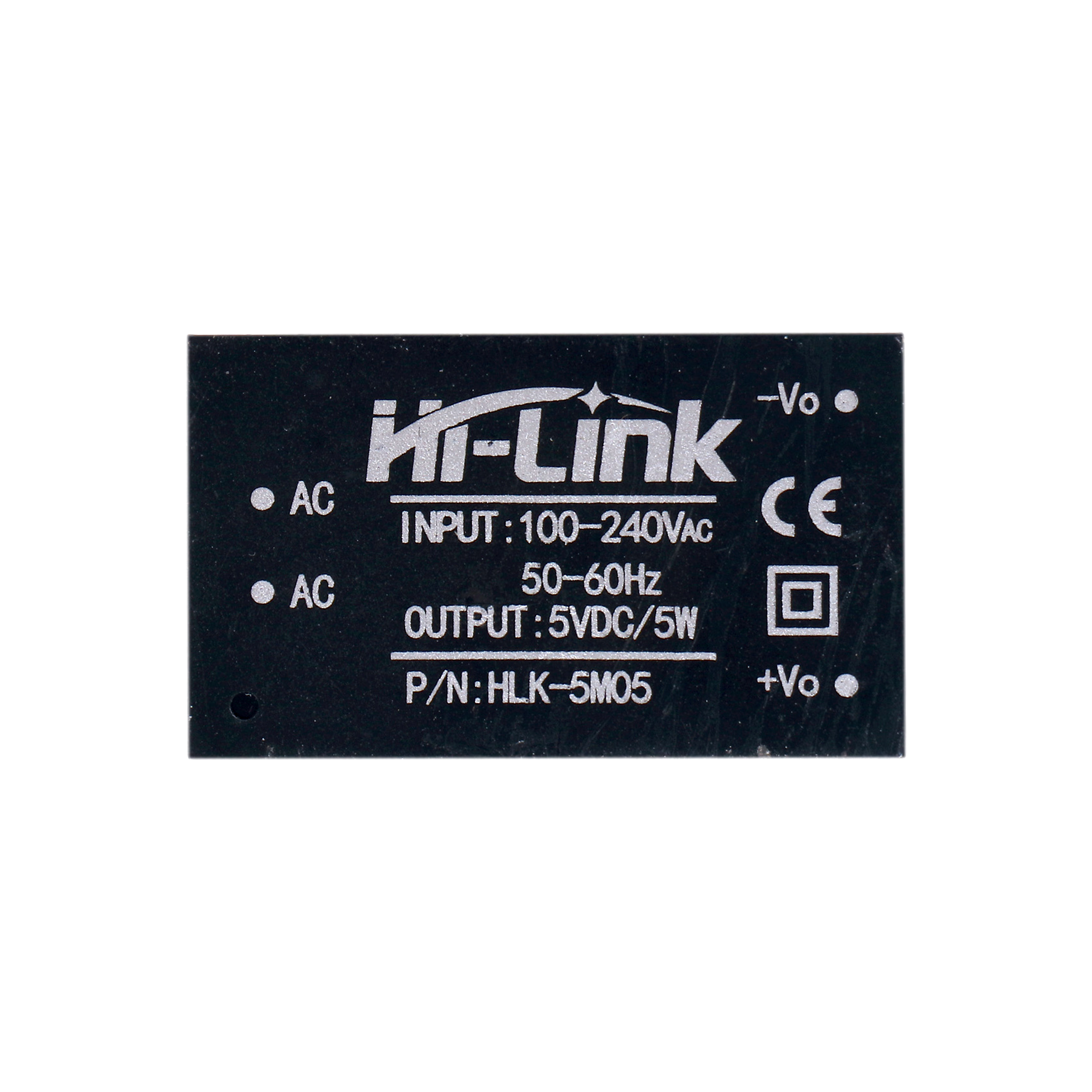

Hi-Link HLK-5M05 5V 5W AC to DC Power Supply
