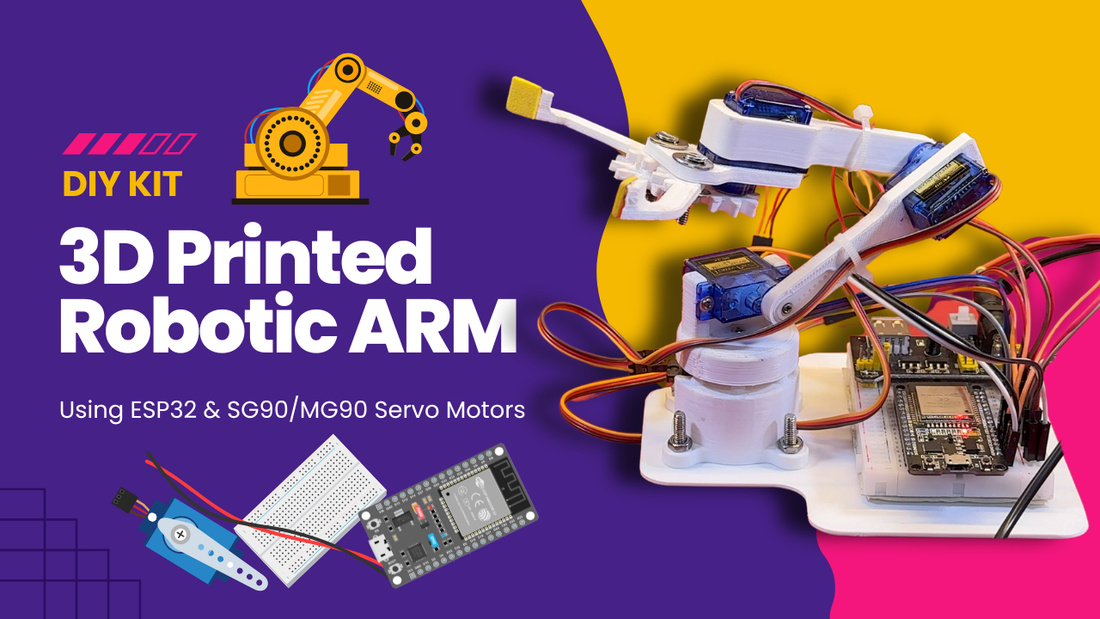

ESP32 3D Printed Robotic Arm Project

Robotics just got way more exciting! 🤖✨ In this DIY project, we build a 4-DOF 3D printed robotic arm using ESP32, high-torque servo motors, and a web-based wireless control interface.

This ESP32 robotic arm project by Kitkraft is perfect for engineering students, school children, and STEM learners who want hands-on experience with robotics, IoT, and embedded systems.

🚀 Project Highlights

3D printed robotic arm with modular design
ESP32 microcontroller with built-in WiFi
4 servo motors for smooth 4-DOF movement
No soldering required – plug-and-play breadboard setup
Web-based control using any browser

📦 What’s Included in the Kit

Custom 3D printed robotic arm parts
4× high-torque servo motors
ESP32 development board
Breadboard
Power supply module
Jumper wires, nuts & bolts

🛒 Buy the ESP32 Robotic Arm Kit:

https://kitkraft.in/RBARMYT

⚙️ How the ESP32 Robotic Arm Works

The ESP32 acts as the brain of the robotic arm. It hosts a lightweight web server that allows users to control each servo motor wirelessly using sliders in a browser.

This makes the project ideal for learning IoT robotics, PWM servo control, and web-based embedded systems without using any mobile app.

🔩 Mechanical Assembly Overview

Assemble all 3D printed parts using nuts and bolts
Mount servo motors securely into the joints
Check smooth movement before connecting electronics

Tip: Avoid over-tightening screws to protect servo gears.

🔌 Circuit Diagram & Connections

📌 Insert Circuit Diagram Image Here

Servo Motor	ESP32 GPIO Pin	Function
Base Servo	GPIO 13	Base rotation
Shoulder Servo	GPIO 12	Arm up/down
Elbow Servo	GPIO 14	Forearm movement
Gripper Servo	GPIO 27	Gripper open/close

⚠️ Important: Use an external 5V power supply for servo motors and ensure all grounds (ESP32 + servos) are connected together.

💻 Programming the ESP32

Install Arduino IDE
Add ESP32 board support
Select correct board and COM port
Upload the provided code

📂 Download Code from GitHub

GitHub Repository:

GitHub - kitkraftin/3d_printed_robotic_arm

The repository includes:

ESP32 web server code
Servo control logic
Web-based control interface (HTML + CSS)

YouTube Links

Short Link :

3D Printed Robotic Arm Kit ESP32: Web Control Demo! #diyrobotics

Longform Video:

3D Printed Robotic Arm Kit: ESP32 Web Control! (DIY Build) - YouTube

🎓 Learning Outcomes

ESP32 WiFi & web server concepts
Servo motor control using PWM
Robotics mechanical assembly
Hands-on STEM & embedded systems learning

🚀 Project Extensions

Add joystick or mobile control
Save preset arm positions
Integrate camera and AI vision
Build pick-and-place automation projects

🎉 Final Thoughts

This ESP32 3D printed robotic arm project is a powerful hands-on learning tool for robotics education. Build it, control it wirelessly, and explore endless automation possibilities.

👉 Start building today:

https://kitkraft.in/RBARMYT

— Team Kitkraft 💙

Frequently Asked Questions

Does this kit require soldering?

No — KitKraft's DIY kits are designed as plug-and-play breadboard builds. Header pins may need to be attached on some advanced/maker-level components, but no soldering is required for the core build.

Is the code pre-loaded, or do I need to upload it myself?

Code is provided (linked in this guide, or included with the kit) and needs to be uploaded to the board yourself using the free Arduino IDE — that's part of the learning experience. Step-by-step upload instructions are included in this guide.

What skill level or age is this project suitable for?

This project is beginner-friendly and works well for school students, engineering students, and hobbyists getting started with electronics — no prior coding or circuit experience is required.

What if I get stuck while building it?

KitKraft offers WhatsApp tech support with every kit purchase, and the wiring diagram, code, and video walkthrough are all included in this guide.
