DIY - Ultrasonic SONAR Kit (Sound Navigation and Ranging) with 180 degree movement - Arduino Nano

The Arduino Nano-based Ultrasonic SONAR with SG90 Servo is a simple yet effective project kit that simulates a radar system using an ultrasonic sensor and a servo motor. a practical and educational DIY kit perfect for learning electronics and automation.

This kit includes all the essential components to build a hands-free, ultrasonic based radar system, combining convenience with STEM learning.

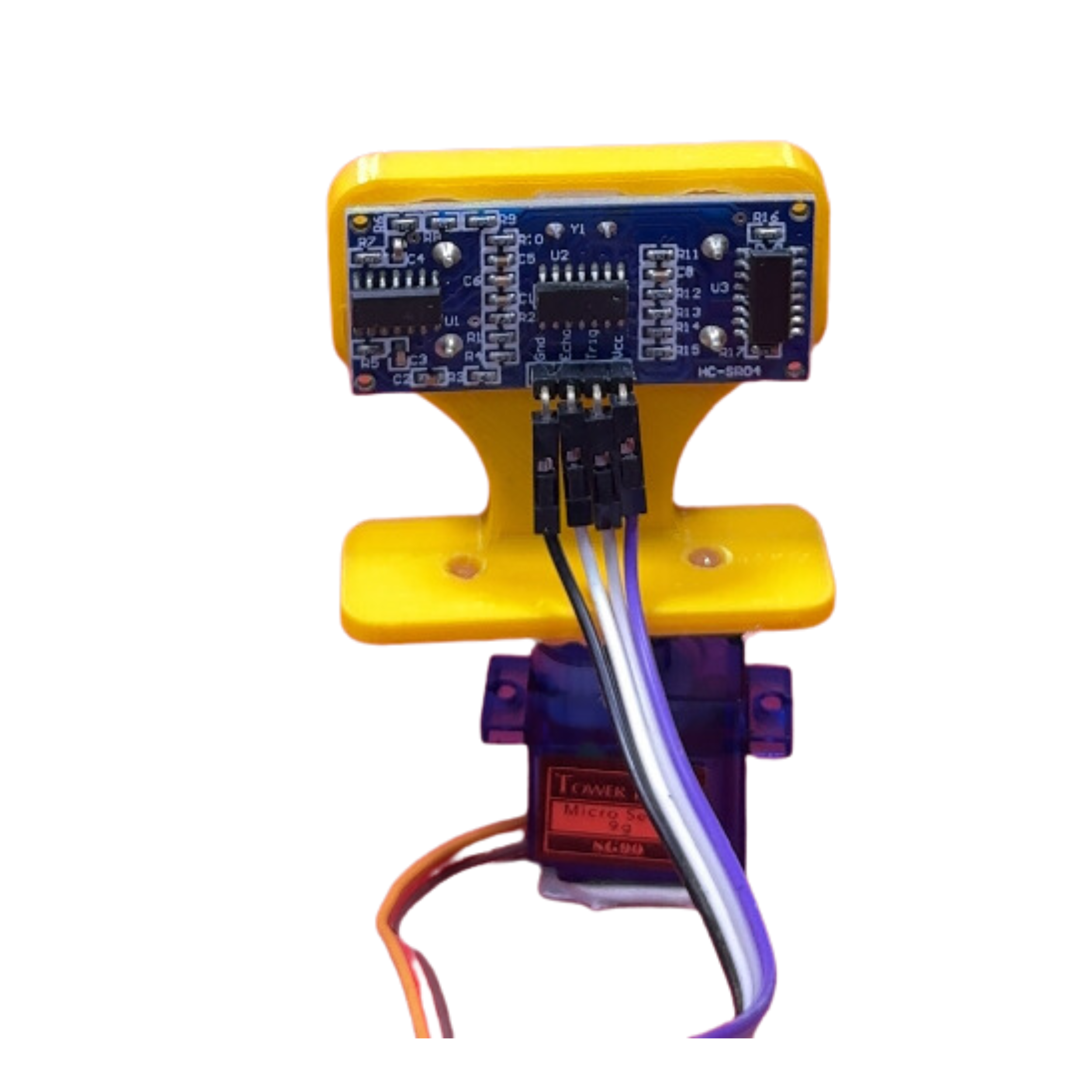

The ultrasonic sensor scans the surroundings, detecting obstacles and measuring distances, while the servo moves the sensor to cover a wider range. The data can be visualized on an LCD, OLED, or even a computer screen via serial communication.

What’s Inside:

• Arduino Nano - 1
• Ultrasonic Sensor (HC-SR04) - 1
• SG90 Servo Motor - 1
• Jumper Wires Male to Male - 1
• Jumper Wire Male to Female - 1
• 400 Point Breadboard - 1
• Breadboard power module - 1

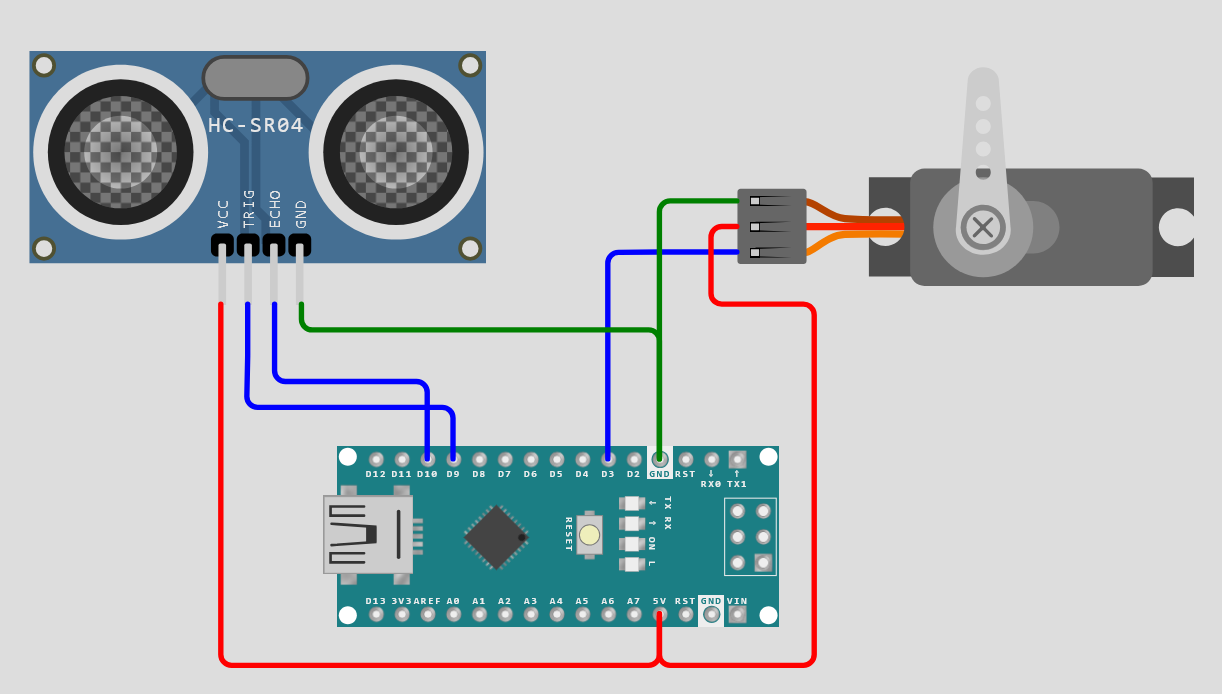

Project Explanation and Code

https://www.kitkraft.in/blogs/project/arduino-ultrasonic-sonar-with-sg90-servo-kitkraft-diy-distance-detection-system

*Ultrasonic Sensor holder not Included

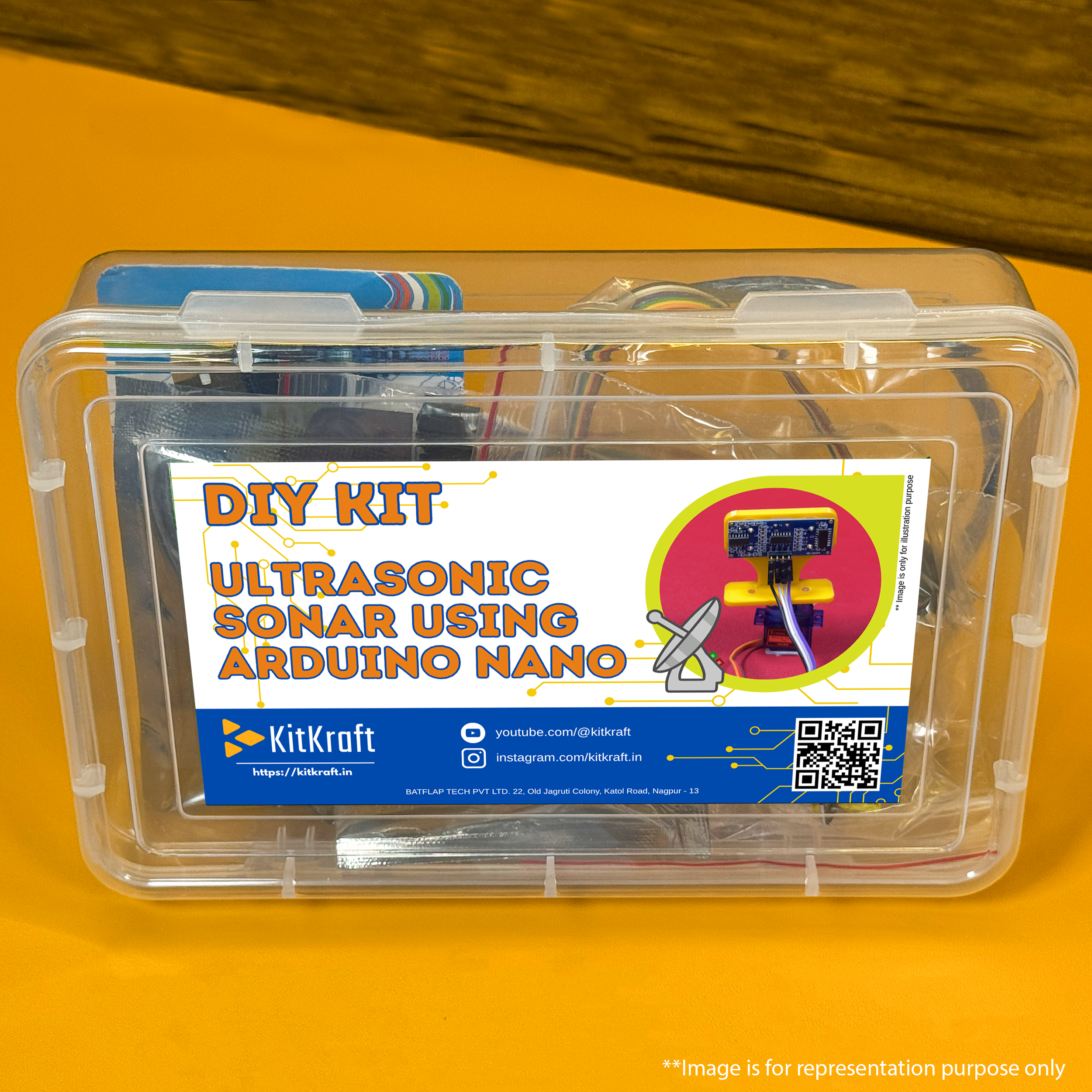

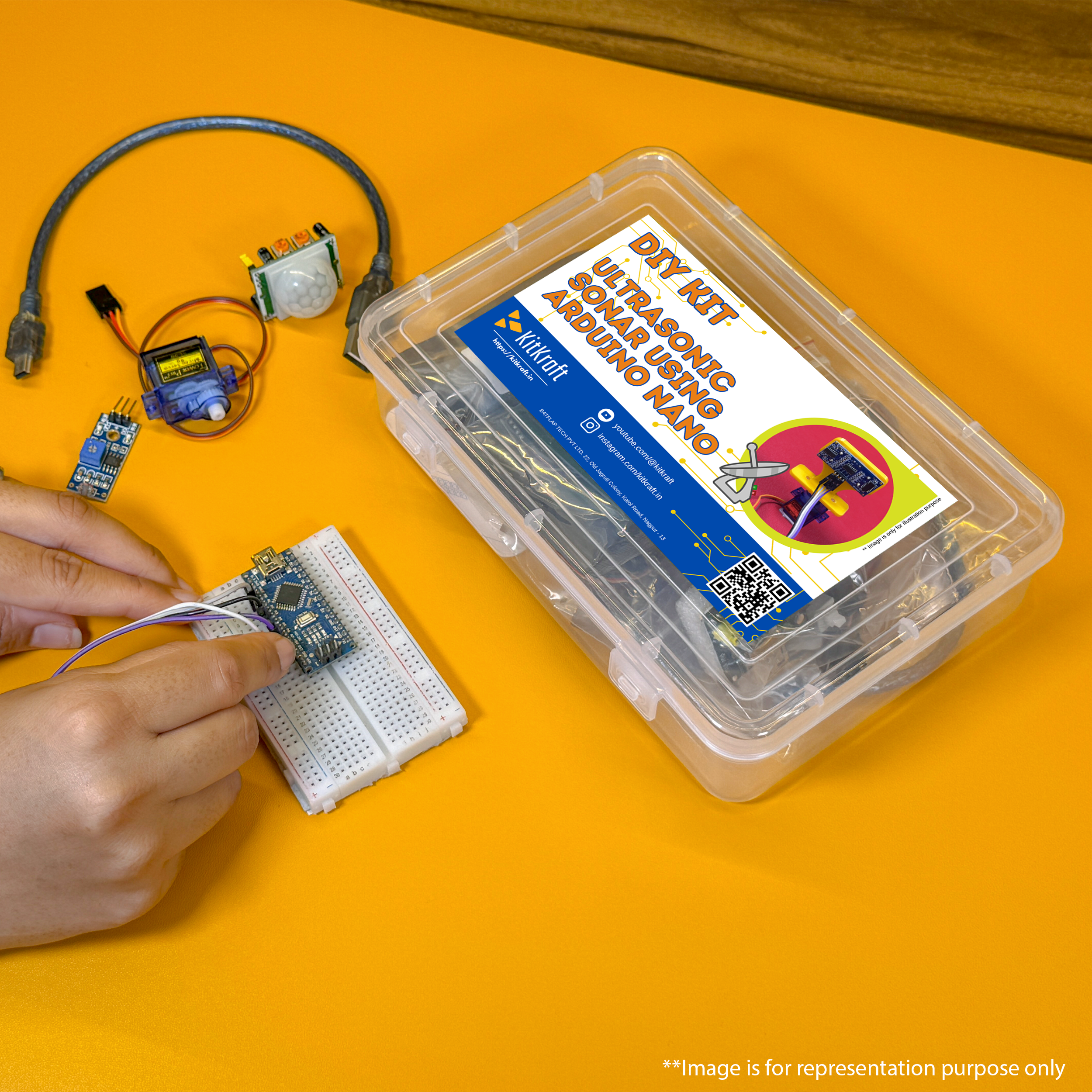

Note: Product image is for illustrative purposes only. The contents of the kit are limited to electronic modules and accessories as specified in the product description.
