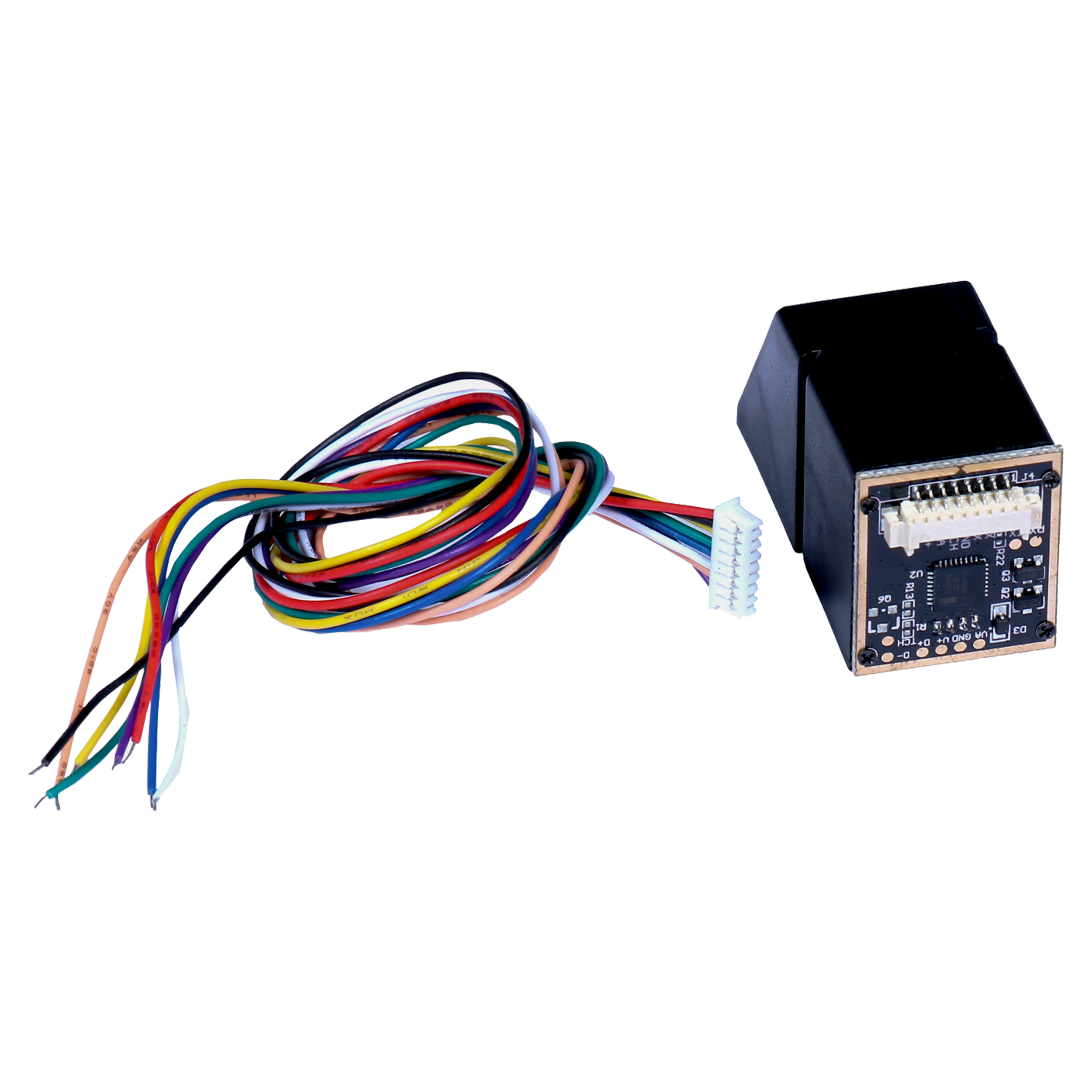

AS608 Optical fingerprint reader module sensor

1. Fingerprint Registration:

   • The module captures and processes fingerprint images during the registration phase.
   • Each fingerprint is entered and processed twice to ensure accurate feature extraction.
   • The processed fingerprint data is then stored within the module.

2. Fingerprint Matching:

   • When a fingerprint is scanned for verification, the module compares the scanned image against stored fingerprint data.
   • Matching can be performed in two modes:
     • Comparison Mode (1:1): Compares the scanned fingerprint to a single stored fingerprint.
     • Search Mode (1): Searches through multiple stored fingerprints to find a match.
   • The module provides a matching result indicating whether the fingerprint is verified or not.

• Integrated Design: Combines image collecting and algorithm processing into a single module for streamlined operation.
• Advanced Optical Technology: Utilizes professional optical technology for high-quality fingerprint image capture.
• High Resolution: Captures images with a resolution of 500 dpi for precise fingerprint recognition.
• Fast Image Entry: Processes and enters fingerprint images in less than 1.0 seconds.
• Compact Size: Small form factor for easy integration into various applications.
• Low Power Consumption: Designed to operate efficiently with minimal power usage.
• Versatile Communication: Supports both USB and UART interfaces for flexible connectivity.
• Secondary Development: Can be embedded into various end products and customized for specific needs.

• Resolution: 500 dpi
• Window Area: 15.3 × 18.2 mm
• Fingerprint Image Entry Time: <1.0 seconds
• Communication Interface: USB/UART
• Size: Compact and lightweight
• Power Consumption: Low

• Security Systems: Enhance access control and authentication processes.
• Embedded Systems: Integrate into consumer electronics, smart devices, and automation projects.
• DIY Projects: Ideal for hobbyists and developers creating fingerprint-based systems.

Explore the capabilities of the AS608 Optical Fingerprint Sensor Module and bring advanced fingerprint recognition technology to your projects.
