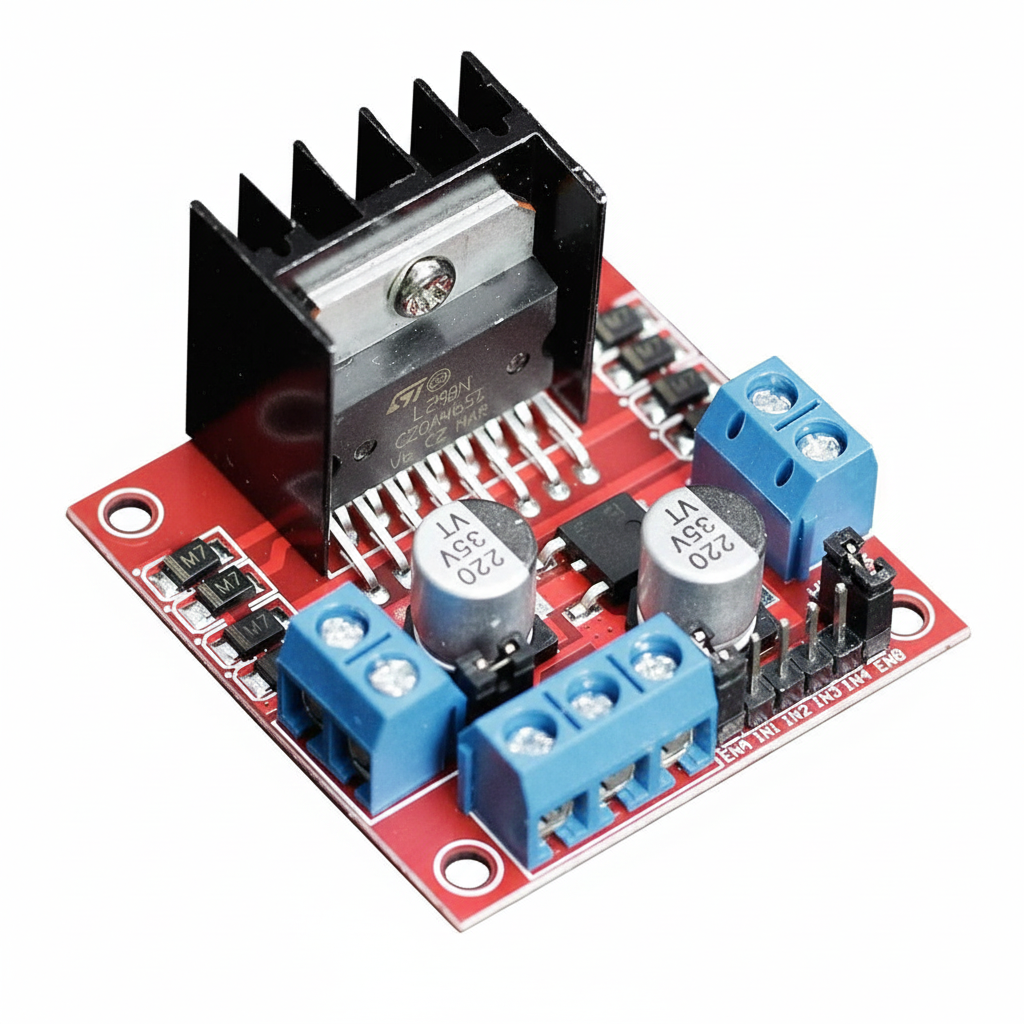

L298N Dual H-Bridge Motor Driver Module – 2A

Description

The L298N Motor Driver Module – 2A is a dual H-bridge motor control board designed for robotics, automation, and DIY electronics. Powered by the reliable L298N IC, it efficiently drives DC motors or stepper motors with smooth speed and direction control.

Its onboard 5V voltage regulator allows powering external circuits, making it ideal for Arduino, Raspberry Pi, ESP32, and other microcontroller-based projects. Perfect for robot cars, line followers, conveyor systems, robotic arms and more.

Note: PCB color may vary depending on stock availability.

Pin Description

• OUT1 / OUT2 – Motor A outputs
• OUT3 / OUT4 – Motor B outputs
• 12V / Vin – Motor power input (7V–35V)
• 5V – Regulated output or input
• GND – Ground
• ENA / ENB – PWM speed control pins
• IN1, IN2 – Motor A direction control
• IN3, IN4 – Motor B direction control

Usage Notes

• Ensure all grounds are connected — power supply, controller, and module.
• PWM pins enable precise motor speed control.
• Compatible with Arduino, ESP8266, ESP32, Raspberry Pi, and others.

Features

• Dual H-bridge motor driver based on L298N IC
• Drives 2 DC motors or 1 stepper motor
• Supports 7V–35V motor supply
• Up to 2A peak output per channel
• Built-in 5V voltage regulator
• Includes heat sink for thermal efficiency
• Power & status LED indicators

Package Includes

• 1 x L298N Based Motor Driver Module – 2A
