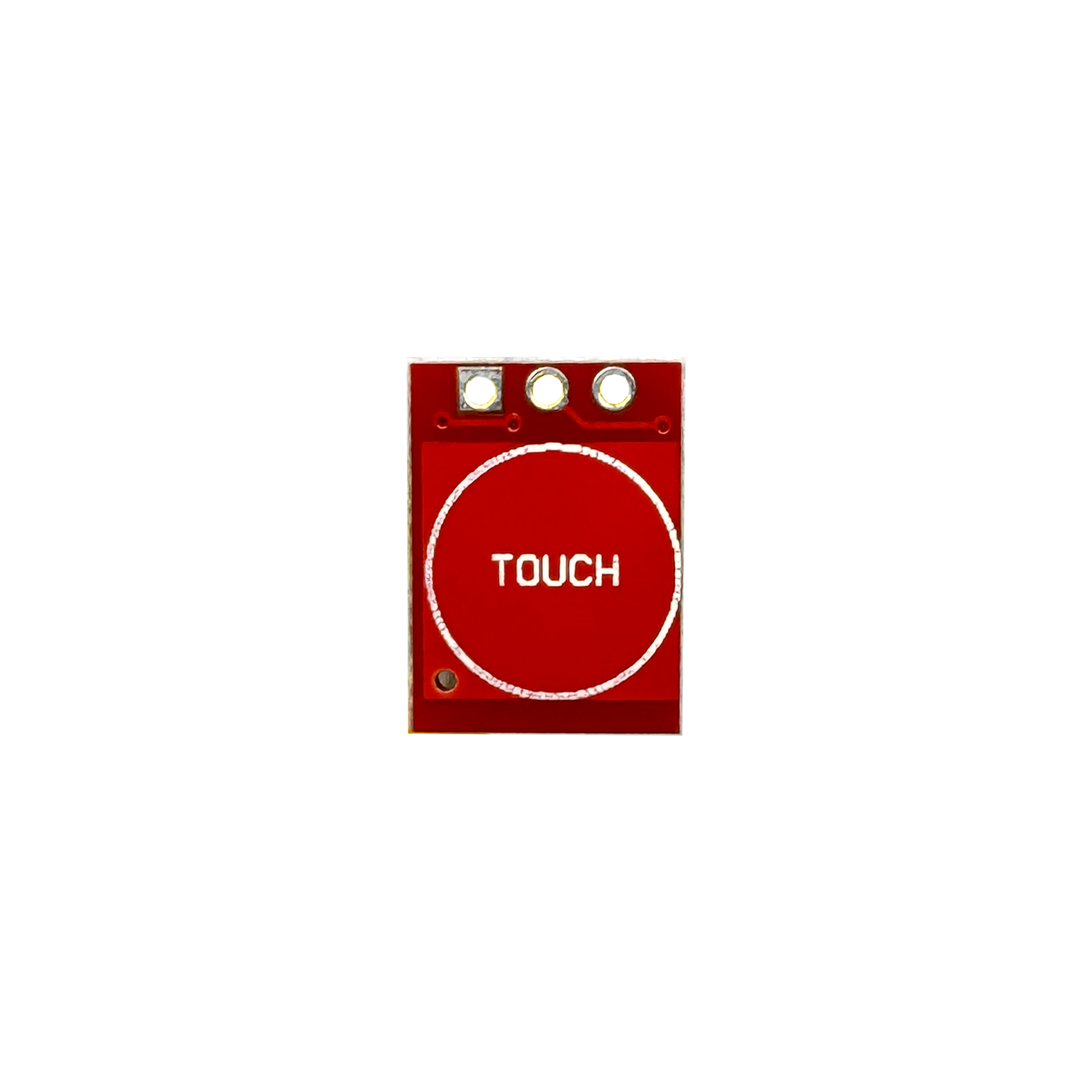

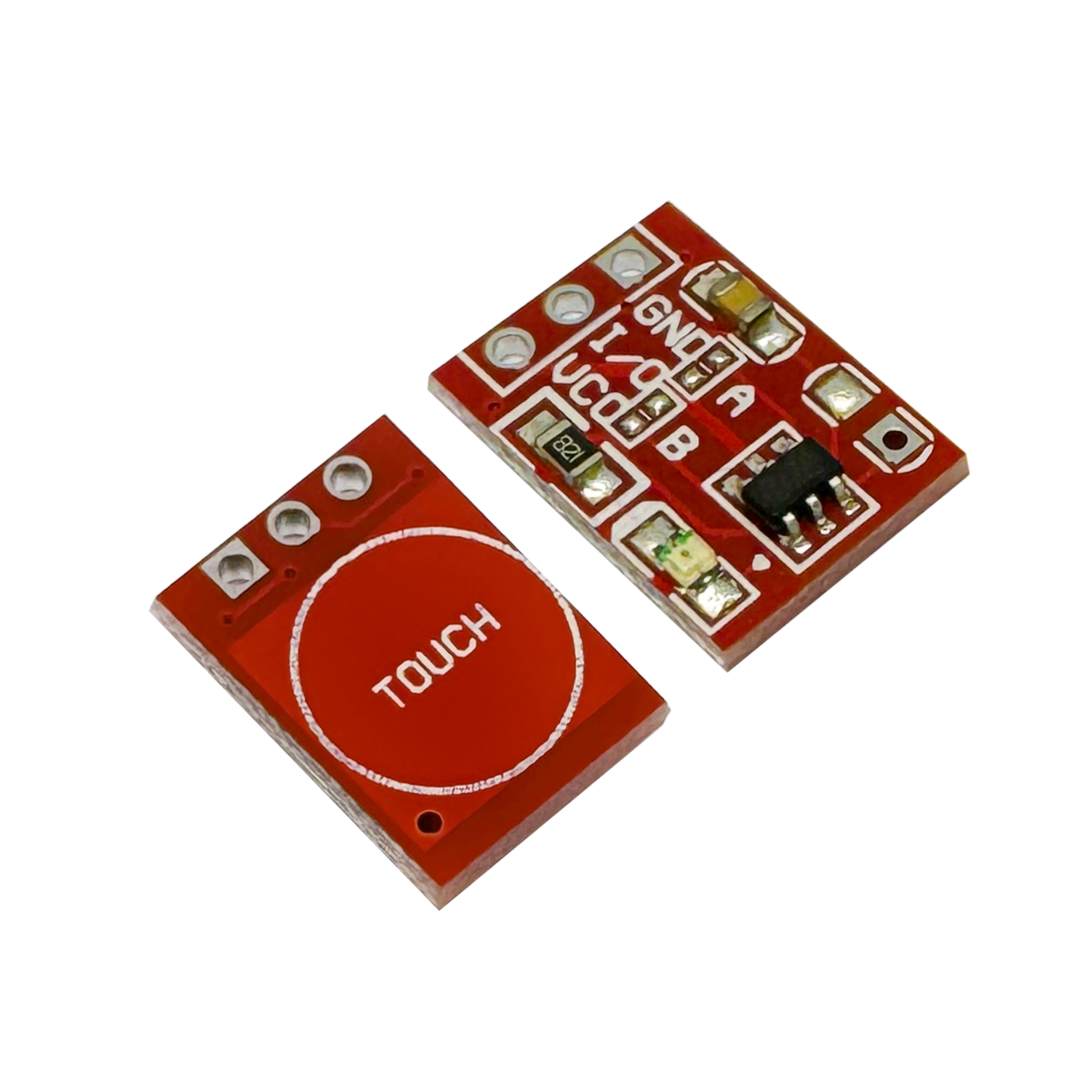

TTP223 1-Channel Capacitive Touch Sensor Module (Red PCB)

The TTP223 1-Channel Capacitive Touch Sensor Module is an innovative and easy-to-use component that brings touch-sensitive functionality to your projects. This module is based on the TTP223 touch sensor IC, which enables the detection of touch input on its surface without the need for physical buttons. Whether you're creating interactive devices, home automation systems, or custom electronics, this touch sensor module provides a reliable and modern solution.

Touch-Sensitive Input: Detects touch input through capacitive sensing technology, allowing for button-free interfaces in your projects.
Red PCB Design: The module features a vibrant red PCB, which not only enhances its visual appeal but also helps in easy identification and integration.
High Sensitivity: The TTP223 IC ensures accurate and responsive touch detection, making it suitable for various applications requiring precise input.
Easy Integration: The module is designed with a simple interface, requiring only a few connections to your microcontroller or development board.
Low Power Consumption: Operates efficiently with minimal power requirements, making it ideal for battery-powered projects.
Multiple Output Modes: Supports both active-low and active-high output modes, providing flexibility depending on your project’s needs.
Adjustable Sensitivity: The sensitivity of the touch detection can be adjusted by modifying the onboard capacitor, allowing customization for different touch surfaces and environments.
Touch and Hold Functionality: The module can detect both short taps and prolonged touch inputs, offering versatile control options.

Operating Voltage: 2.0V to 5.5V DC
Output: Digital (High/Low)
Output Modes: Active-Low or Active-High (configurable)
Response Time: Fast response time for quick touch detection
PCB Dimensions: Approximately 10mm x 10mm
Mounting Holes: None, designed for easy PCB or breadboard integration
Color: Red PCB

Compact Form Factor: The small size of the module makes it easy to integrate into compact projects where space is a premium.

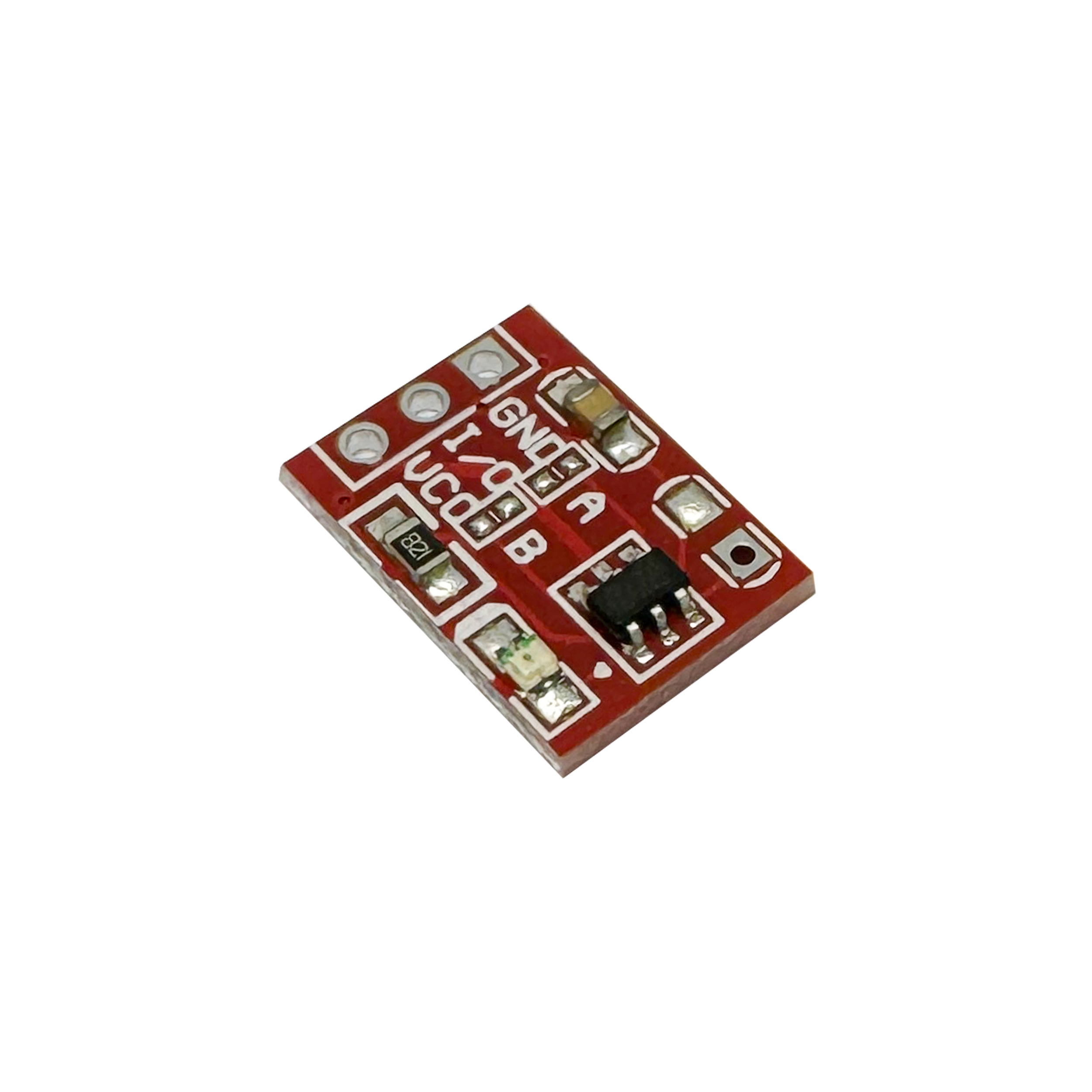

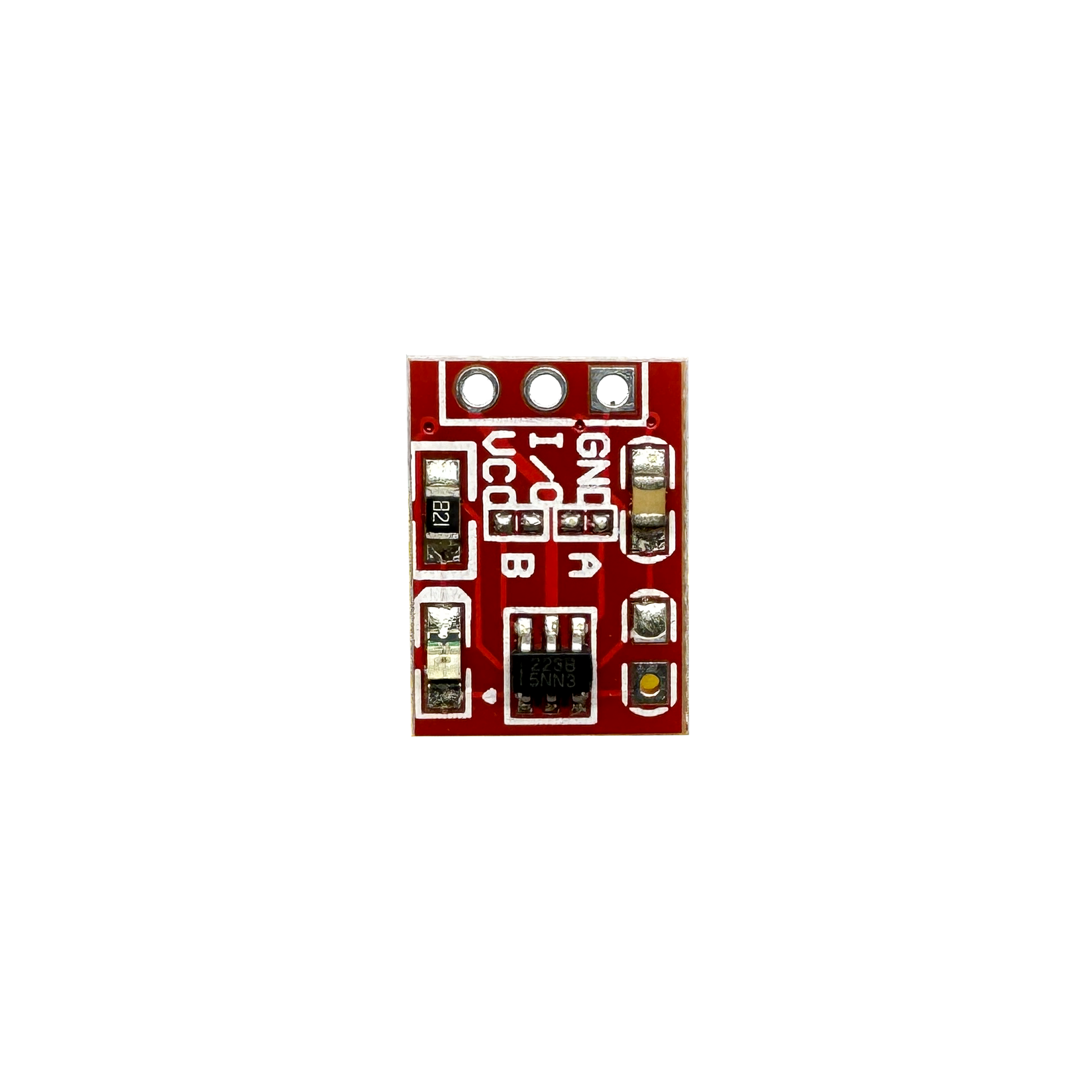

Clear Pin Labels: The module features well-labeled pins (VCC, GND, OUT), ensuring straightforward connections during setup.
LED Indicator: An onboard LED indicator lights up when the touch input is detected, providing immediate visual feedback.
Single Channel: Designed with a single touch-sensitive area, suitable for projects requiring one touch input per module.

Home Automation: Use the TTP223 module to create touch-sensitive light switches, dimmers, and other smart home controls.
Interactive Projects: Perfect for interactive art installations, touch-activated toys, or educational kits.
Wearable Electronics: Integrate touch functionality into wearable devices such as fitness trackers or smart clothing.
User Interfaces: Replace traditional mechanical buttons with a sleek, touch-sensitive interface for a modern look and feel.
