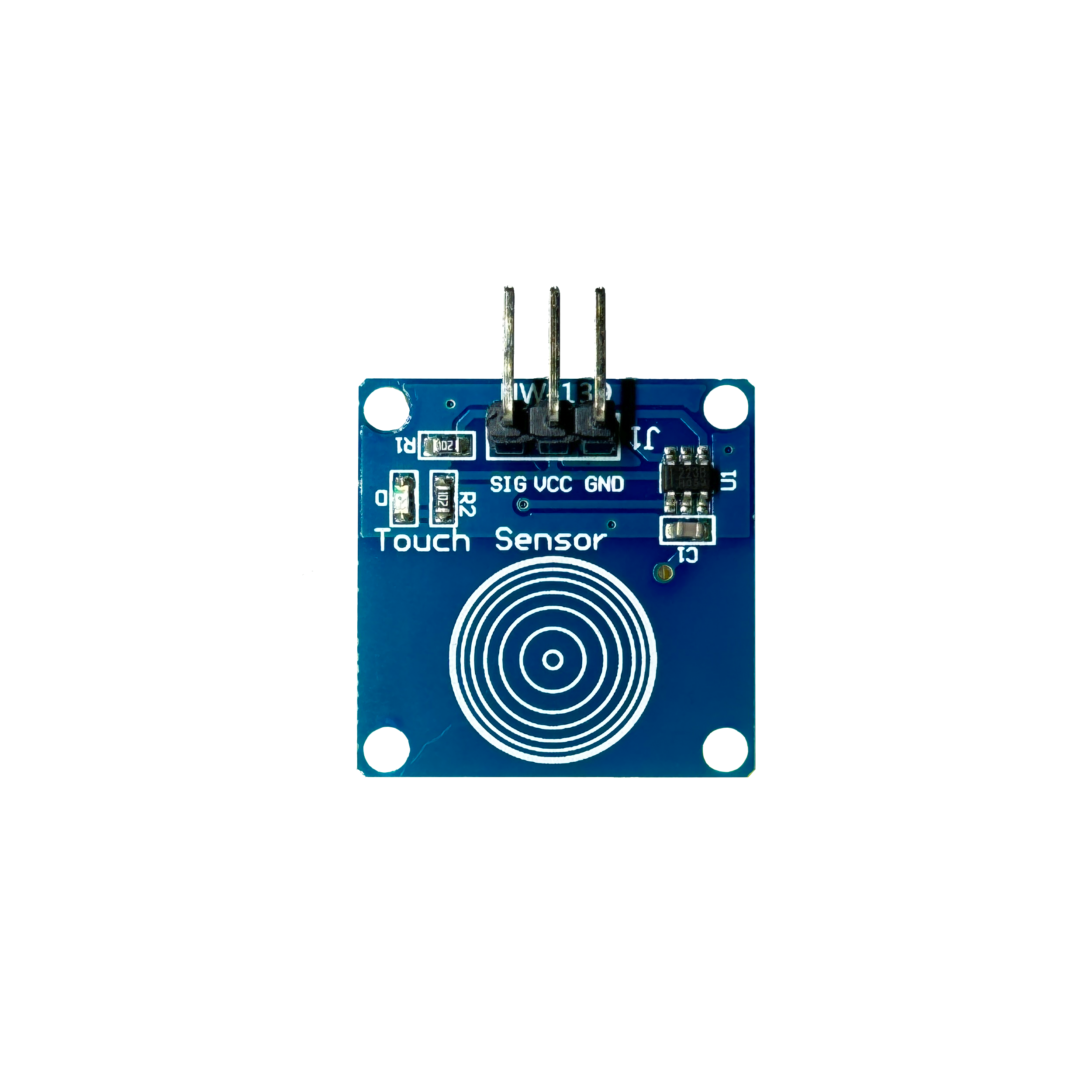

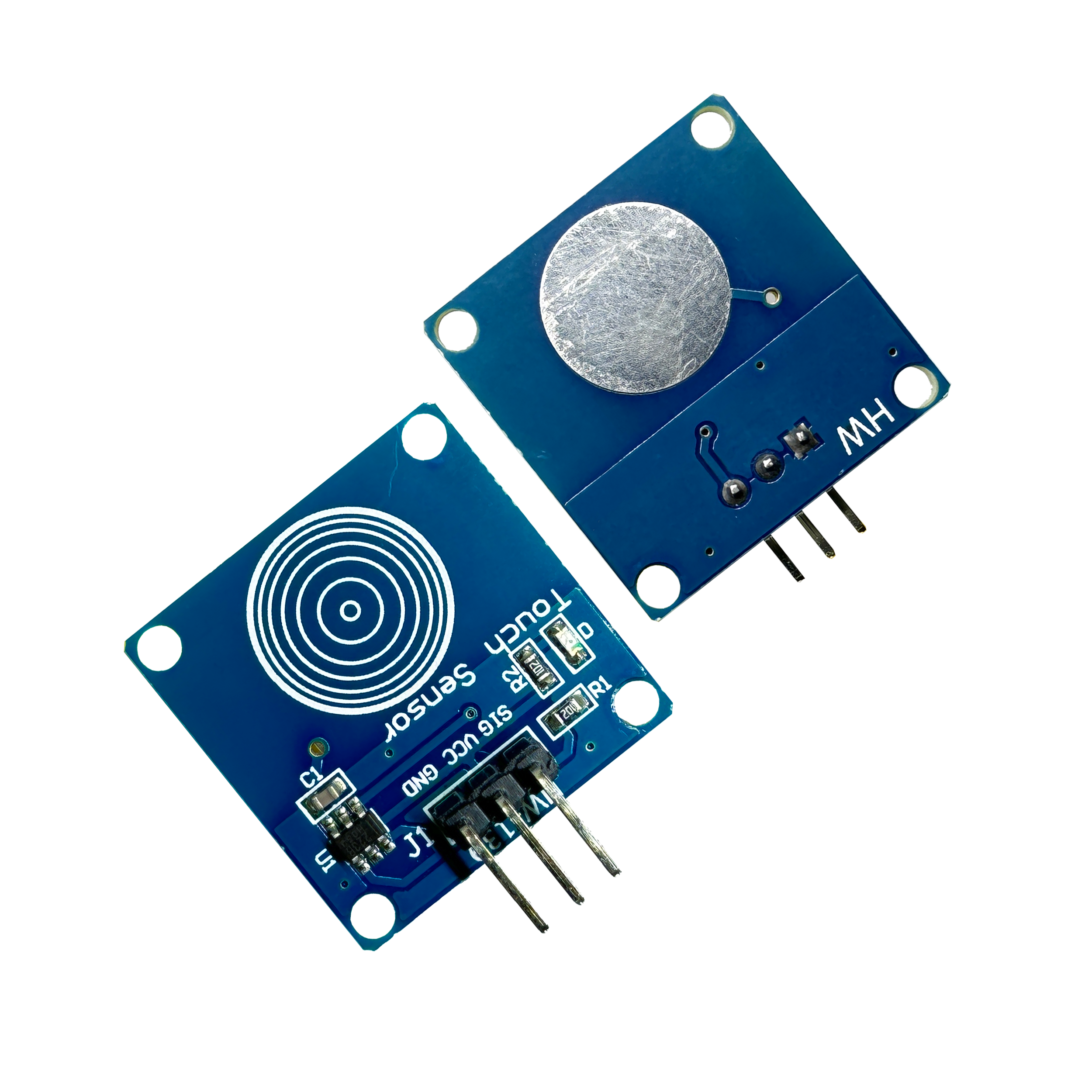

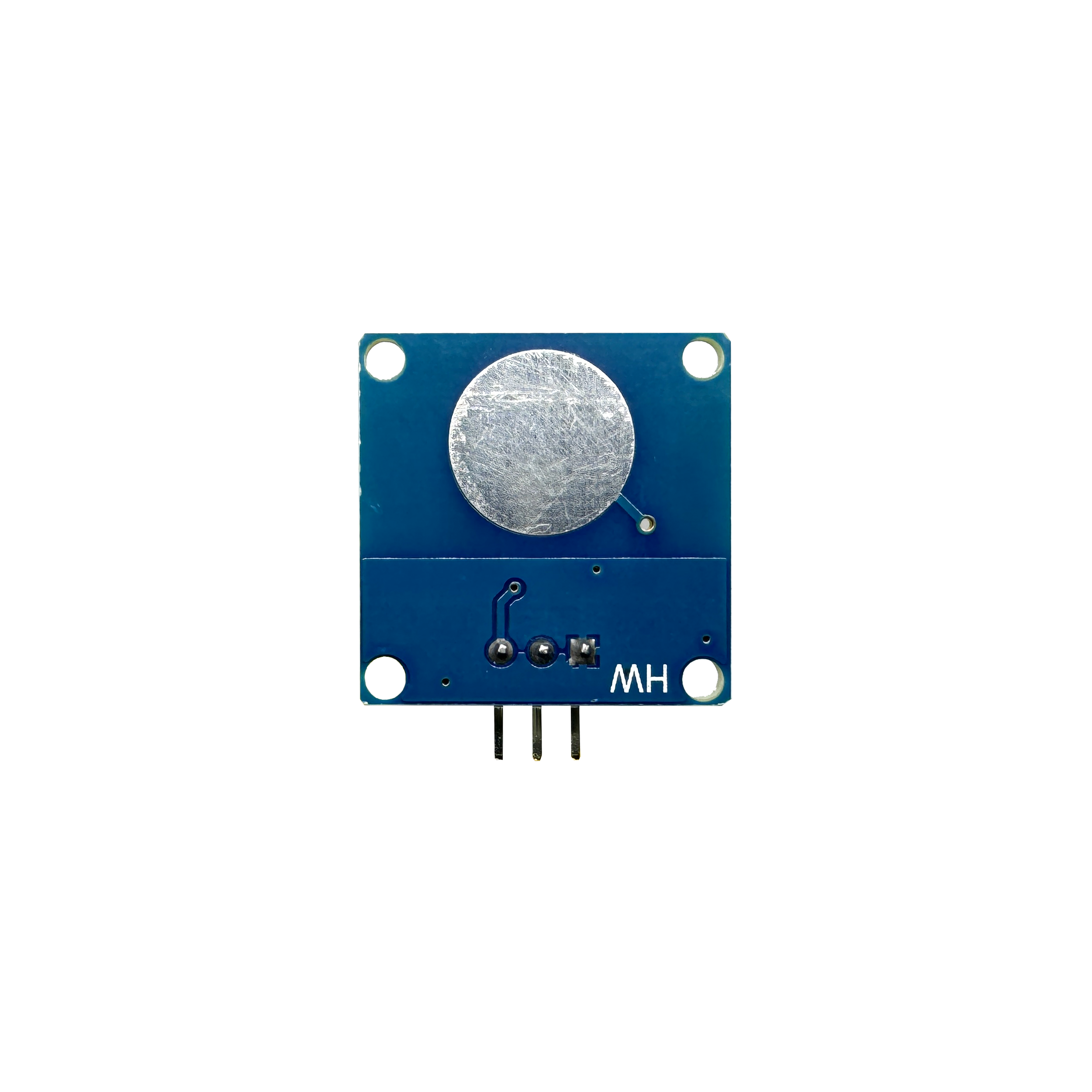

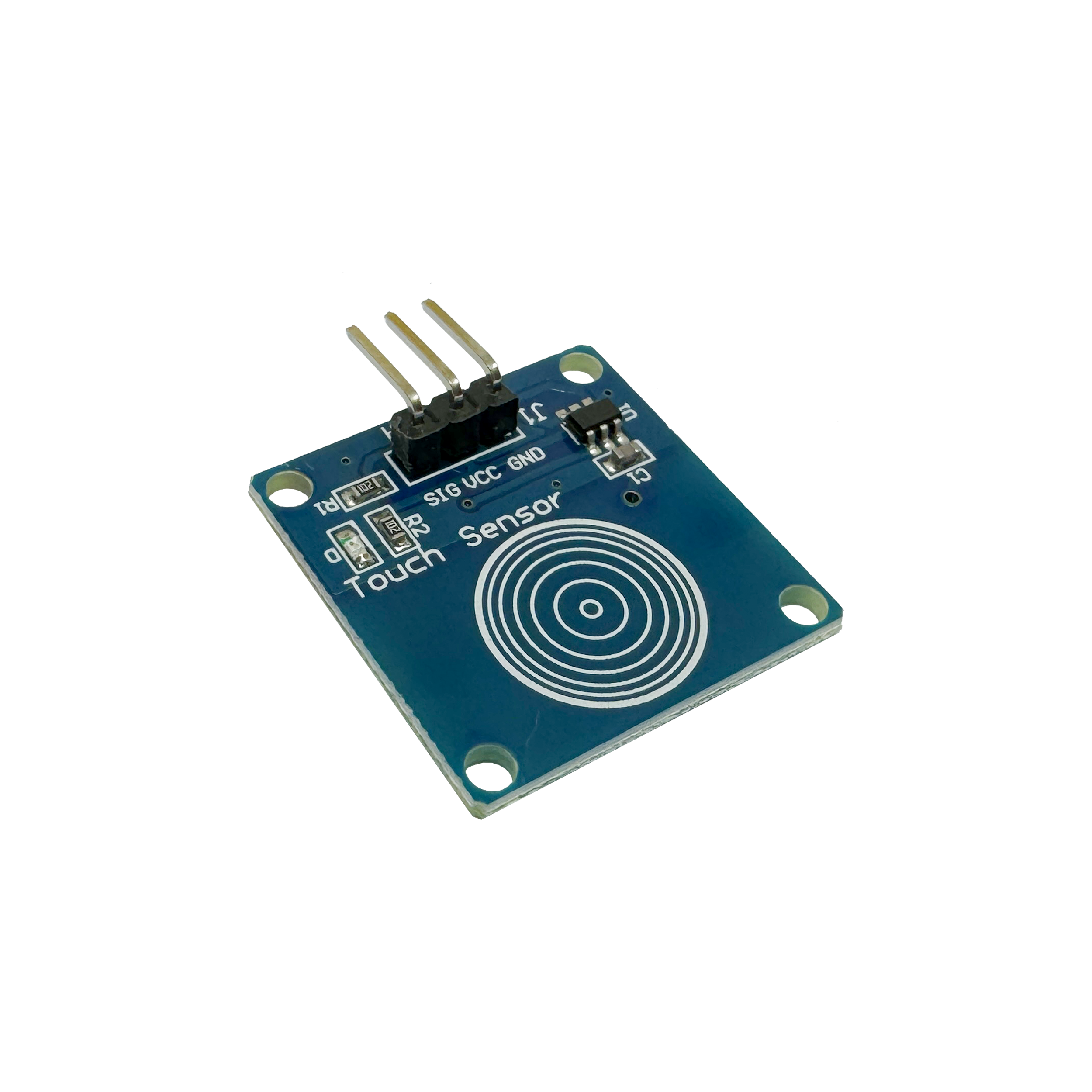

Introducing the TTP223 1 Channel Capacitive Touch Sensor Module (Blue)

Enhance your projects with the TTP223 1 Channel Capacitive Touch Sensor Module. Utilizing the TTP223 touch-sensing IC, this module effortlessly adds capacitive touch input to your designs, replacing traditional button keys with a modern touchpad interface.

Easy Interface: Seamlessly integrates with microcontrollers or Arduino, and can function independently.
Capacitive Sensing: Detects touch from capacitive loads such as human hands, activating the switch upon proximity.
Customizable Pads: Use nearly any conductive material for custom sense-pads, detecting touch through thin non-conductive layers like glass, plastic, fabric, or wood.
Low Power Consumption: Outputs low in the normal state, conserving power. When touched, the output goes high and reverts to low-power mode after 12 seconds of inactivity.
Versatile Installation: Install on non-metallic surfaces like plastic or glass, and hide buttons behind thin non-metallic coverings.

Operating Voltage: 2.0V to 5.5V DC
Output High (VOH): 0.8VCC
Output Low (VOL): 0.3VCC
Touch Response Time: 60ms
Low Power Mode Response Time: 220ms
Output Pin Sink Current: 8mA (@ VCC = 3V, VOL = 0.6V)
Output Pin Pull-up Current: 4mA (@ VCC = 3V, VOH = 2.4V)
Dimensions: 24 x 24 x 7.2 mm

Low Power Consumption: Ideal for energy-efficient applications.
Wide Voltage Range: Operates between 2.0V and 5.5V DC.
Button Replacement: Effectively replaces traditional touch buttons.
Easy Installation: Four M2 screw holes for straightforward mounting.

DIY Projects: Ideal for hobbyists looking to add a touch interface to their projects.
Smart Home Devices: Integrate into home automation systems for modern, touch-sensitive controls.
Industrial Controls: Use in machinery or equipment requiring durable and reliable touch interfaces.
Hidden Buttons: Conceal buttons in walls, desks, and other surfaces for a sleek, uncluttered look.
